Heating Blankets for Pipe Joint Curing

OTA Fiberglass Heating Blankets are engineered for controlled heat curing of adhesive joints and laminated pipe connections in GRE, and RTR piping systems. Designed for harsh field conditions,

they ensure uniform temperature distribution, reliable curing, and long-term joint integrity.

Products

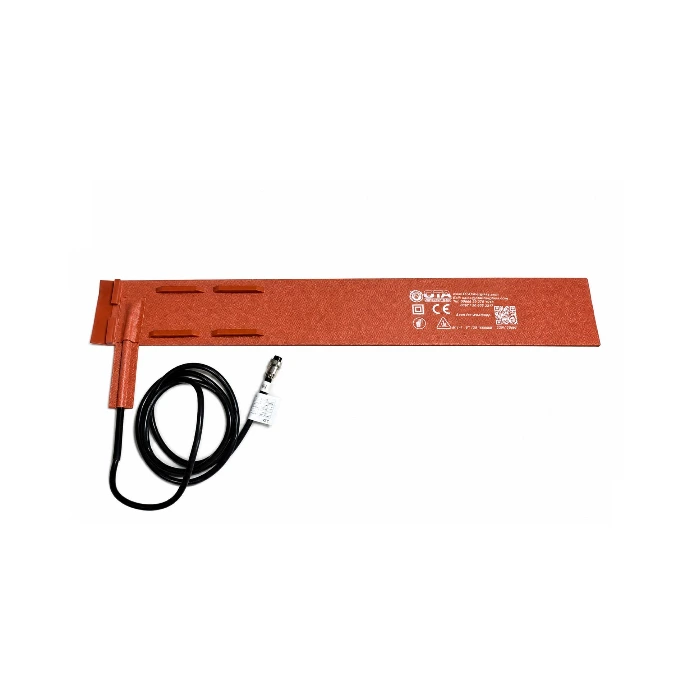

heating blanket for rtr pipe temperature controller

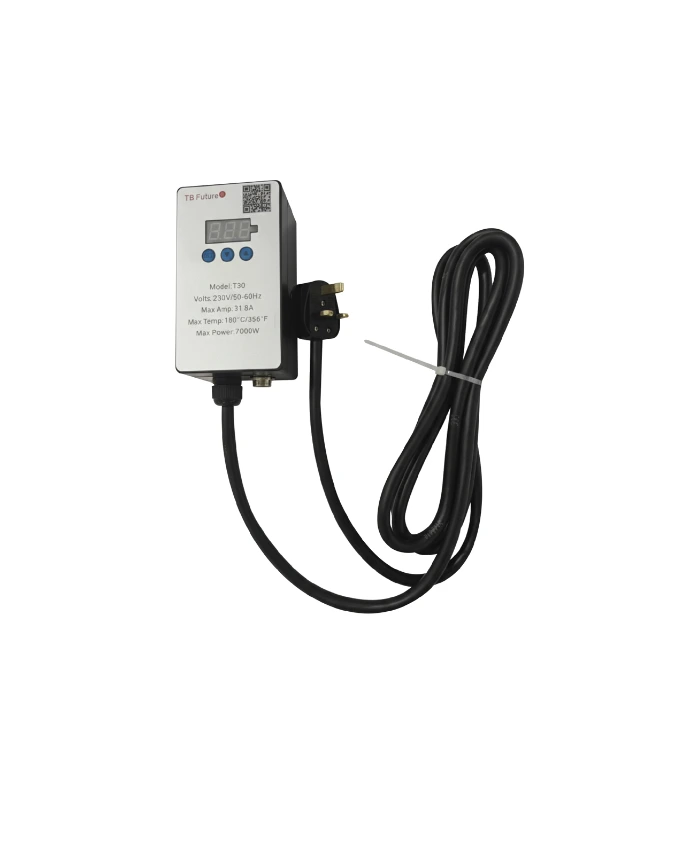

T03 Smart Controller - Compact

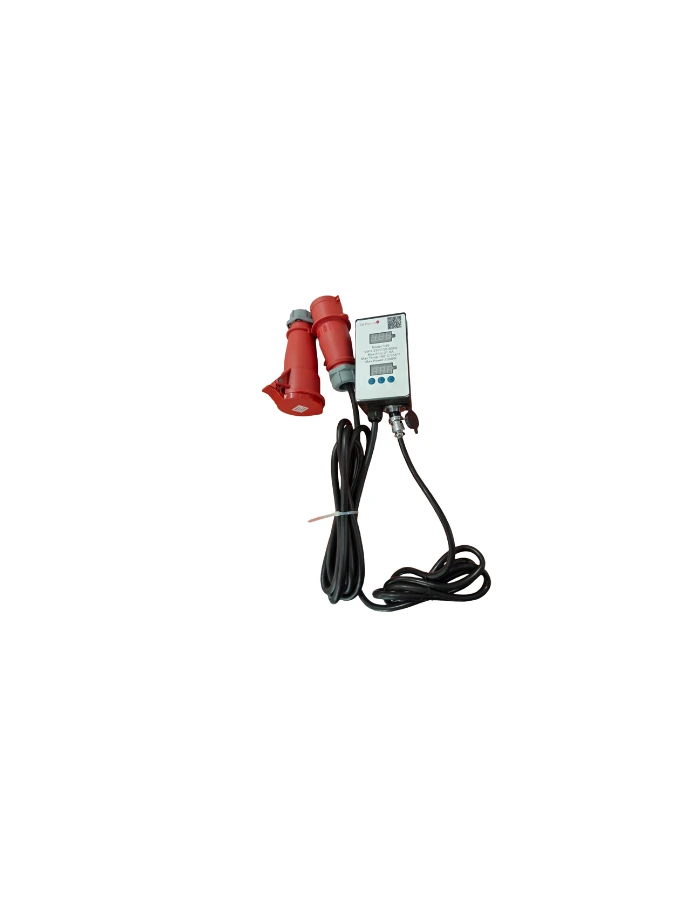

fiberglass pipes temperature controller heating blanket

Installation & Operation

How It Works

1. Complete joint lamination or adhesive bonding

2. Wrap heating blanket in a single layer (no overlap)

3. Secure using spring buckle or snap-stud system

4. Connect to or TB Future T30

5. Set required curing temperature

6. Monitor via neon indicators or digital display

7. Allow controlled cure cycle to complete

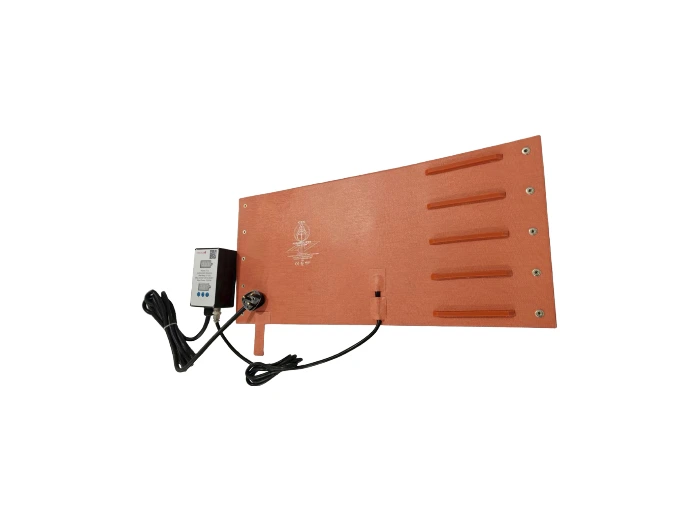

temperature controller on top of heating blanket for fiberglass pipes

Safety & Handling

Safety Highlights

• Do not overlap blankets during operation

• Do not touch blanket during or immediately after curing

• Avoid use in wet or damp conditions

• Allow minimum 30 minutes cooling before handling

• Cold-tab handles on M1 ensure safer adjustment during heating

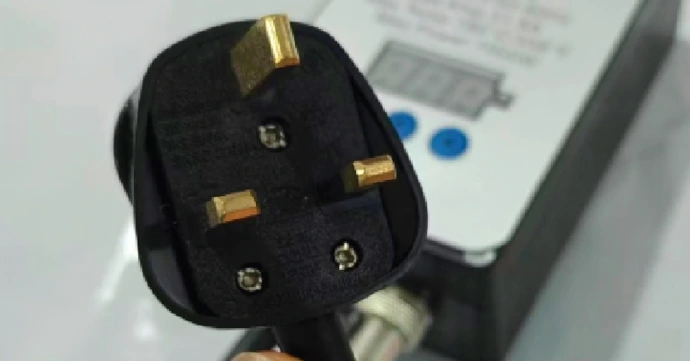

heating blanket temperature controller technical specifications

Technical Specifications (Summary)

Parameter Specification

• Voltage 110V / 220V AC

• Temperature Range 50°C – 200°C

• Recommended Control 0–150°C

• Pipe Size Range 1’’– 96’’

• Max Power (T30) 7000W

• Sensor Type PT100

• Protection Rating IP65

• Cable Length 2m (M2), 3m (M1)

Heating Blankets and Temperature Controllers

For curing GRE/FRP lamination. Available in a wide range of pipe sizes (from 1″ to 96″), these blankets come with an integrated temperature controller, ensuring proper resin curing even in harsh or cold environments.
